Plain Ring Gauges |
|
PLAIN PLUG GAUGES
Plain Plug Gauges are used for attribute inspection of plain internal diameter measurement.
Specifications :-
Basic Dimensions:- ISO 286 part 1 & 2 -2010
Gauging Practice : IS 3455 -1971,DIN 7164-1966 & IS 7859-1975
Manufacturing Range :
Diameter 1 mm – 10 mm are supplied in reversible pin type design.
Diameter 10 mm -40 mm are supplied in Taperlock design
Diameter 40 mm – 100 mm are supplied in Trilock design
Diameter 100 mm -250 mm are supplied in plate type design |
| |

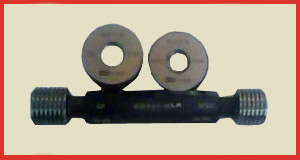

| ISO Metric Thread Gauges |
 |
These are most commonly used gauges in the Industry
Specifications :-
ISO Standard : Basic Dimensions : ISO 724-1993 (E),Gauging Practice: ISO 1502-1996 & ISO 965/1-1998
Basic Dimensions :IS 4218 (3)-1999,IS 4218(4)-2001
Gauging Practice : IS 2334-2001
Manufacturing Range :
Diameter 1.6 mm to 260 mm & Pitches covered are 0.35 to 12 mm |
| |
|
| |
| Our Inspection Facilities |
 |
Our Important Measuring Instruments
Universal Horizontal Metroscope
Traceable to NPL vide their certificate no : 739/02/214/2001
Used for Calibration of Plain Ring Gauges, Master Setting Ring, Thread Plug, Thread Ring & Special Gauges
L.C.: 0.0002 mm
Make : 'CARL-ZEISS' JENA GERMANY
Profile Projectors
Traceable to NPL vide their certificate no : 739/02/215/2001
Used for measurement of Thread Angle and form of Thread Plug Gauges & Thread Ring Gauges.
L.C.: 2 minutes
Make : OPTO MECH.
Floating Carriage Micrometers
Traceable to NPL vide their certificate no : 739/02/216/2001
Used for Pitch diameter measurement of Thread Plug Gauges
L.C.: 0.002 mm
Make : ADITYA (ACCURATE)
|
